PolySwitch?
PTC Devices
PRODUCT: AHRF1300
DOCUMENT: SCD 25302
308 Constitution Drive
Menlo Park, CA 94025-1164
Phone: 800-227-485 6
www.circuitprotection.com
Overcurrent Protection Device
Raychem Circuit Protection Products
PCN: C42424
REV LETTER: C
REV DATE: MAY 8, 2007
PAGE NO.: 1 OF 2
Specification Status: RELEASED
Electrical Rating
Voltage:
16V DC MAX
Insulating Material:
Cured, Flame Retardant Epoxy
Polymer
Lead Material:
18 AWG Tin Plated Copper
( 1.0 mm [0.040] nom. diameter)
Part Marking:

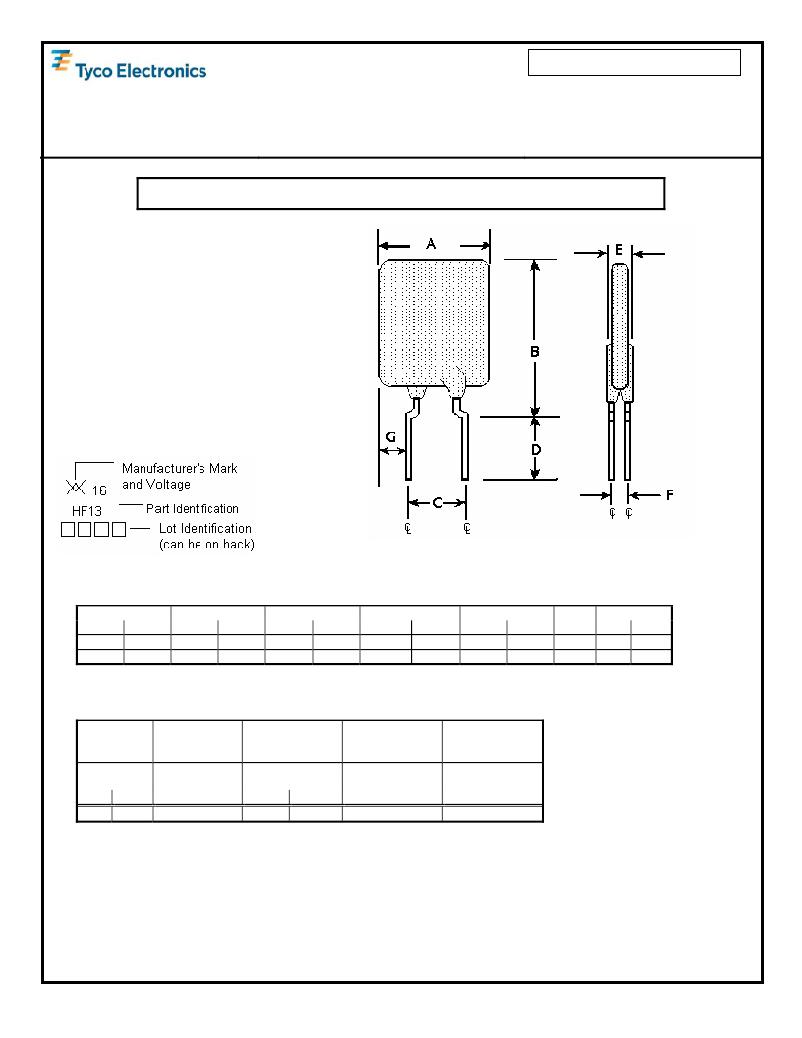

TABLE I. INSTALLATION ENVELOPE DIMENSIONS:
A B
C
D
E
F
G
MIN MAX MIN MAX
MIN
MAX
MIN
MAX
MIN
MAX
TYP
MIN
MAX
mm:
in*:
-- 23.5 -- 28.7
-- (0.93) -- (1.13)
9.4
(0.37)
10.9
(0.43)
7.6
(0.30)
--
--
--
--
3.5
(0.14)
1.4
(0.06)
--
--
7.82
(0.31)
*Rounded off approximation
TABLE II. PERFORMANCE RATINGS:
CURRENT
RATINGS
TIME TO
TRIP
RESISTANCE
R a MAX
TRIPPED-STATE
POWER
DISSIPATION
AMPS
AT 25°C
HOLD TRIP
SECONDS AT
25°C, 65 A
MAX
OHMS
AT 25°C
MIN MAX
OHMS
AT 25°C
WATTS AT
25°C
TYP
13.0 27.0
15.0
.0034
.0069
0.010
6.9
Reference Documents:
Precedence:
Effectivity:
CAUTION:
PS400, PS300 (reference for R 1 MAX )
This specification takes precedence over documents referenced herein.
Reference documents shall be the issue in effect on the date of invitation for bid.
Operation beyond the rated voltage or current may result in rupture, electrical arcing or flame.
? 2004,2007 Tyco Electronics Corporation. All rights reserved.
